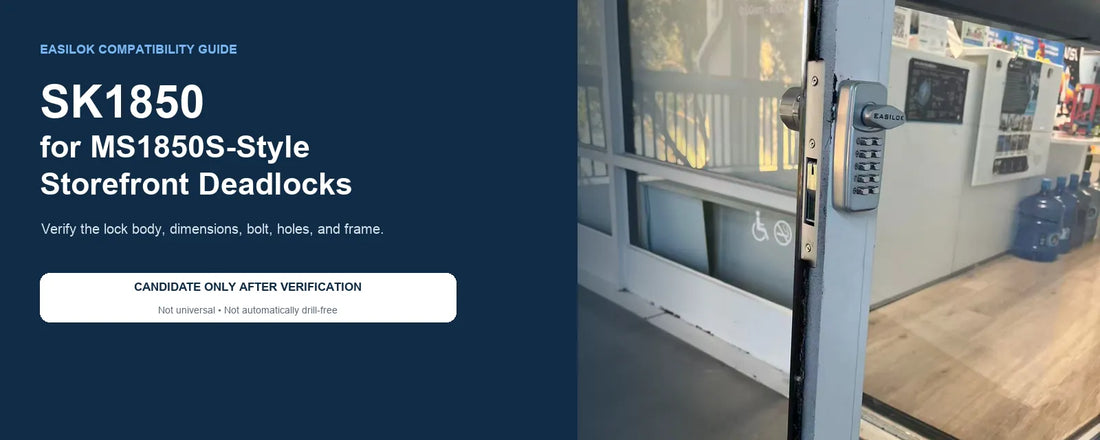

EASILOK SK1850 Compatibility Guide: Replacing an MS1850S-Style Storefront Deadlock
EASILOK SK1850 can be considered for a compatible narrow-stile storefront deadlock using an MS1850S-style preparation only after the existing lock body, backset, door thickness, bolt, cutout and holes, and frame or strike have been verified. It is not a universal Adams Rite replacement. SK1850 currently lists 31/32-inch, 1-1/8-inch, and 1-1/2-inch backset directions; an existing 7/8-inch lock should not be rounded or substituted with 31/32 inch.
Quick Decision: Is SK1850 a Candidate?
| Existing condition | What it means for SK1850 |
|---|---|
| Narrow-stile storefront deadlock with a verified MS1850S-style preparation | Continue through the complete fit checklist |
| Backset is exactly 31/32, 1-1/8, or 1-1/2 inches | A current SK1850 backset direction may exist; verify the exact bolt-and-backset SKU |
| Backset is 7/8 inch | Current SK1850 information does not list 7/8 inch; do not substitute 31/32 inch |
| Existing lock is a spring-loaded deadlatch with a push paddle | Use the deadlatch product path, not SK1850 |
| Existing lock sits in a glass door’s bottom rail | Use the bottom-rail product path, not SK1850 |
| Existing bolt, holes, faceplate, cutout, frame, or strike differs | Do not assume fit or drill-free installation; obtain a qualified assessment |
| A keyed emergency-entry or SFIC path is required | SK1850 has no key cylinder; evaluate the appropriate verified key-override configuration separately |
If the lock-body category is not yet clear, start with the storefront lock identification guide. If the measurements are incomplete, use the storefront lock measurement guide before comparing models.
What Is EASILOK SK1850?
SK1850 is a mechanical keypad storefront deadlock with no key cylinder. Normal code operation does not depend on batteries, wiring, electronics, or an app. It is intended as a replacement direction for compatible narrow-stile storefront doors using an MS1850S-style lock-body preparation.
| Confirmed SK1850 field | Current product direction |
|---|---|
| Product type | Mechanical keypad storefront deadlock |
| Locking and unlocking | Keyless code operation |
| Key cylinder | None |
| Bolt directions | Hookbolt or straight deadbolt, selected by verified existing conditions |
| Backset directions | 31/32, 1-1/8, or 1-1/2 inches |
| Door-thickness direction | 1-3/8 to 1-3/4 inches |
| Finish colors | Black or silver |
| Mechanical warranty | 3 years |
| Installation information | Instructions are supplied with the product; verify that any separate file is explicitly labeled for the exact SK1850 unit |
This table does not mean every bolt and backset combination is available in every current SKU. Confirm the exact option on the current product listing or with EASILOK before ordering.
Identify the Existing MS1850S-Style Lock Body
Do not classify the old lock from the outside cylinder or brand name alone. Photograph the door edge and identify the existing deadlock body, faceplate, bolt, receiver, holes, and interior hardware.
Adams Rite’s official MS1850S reference separates two relevant bolt directions:
- The standard MS1850S uses a straight bolt for a swinging narrow-stile aluminum door.
- The MS1850S-X5X uses a hook-shaped bolt for a sliding narrow-stile aluminum door.
These descriptions help identify the old hardware. They do not transfer Adams Rite’s bolt dimensions, materials, throw, certifications, or other specifications to SK1850, and they do not prove that SK1850 fits a particular door.
Collect at least:
- The full door from outside and inside.
- The door edge and complete faceplate.
- Any old brand and model marking.
- The bolt fully visible without forcing the mechanism.
- The frame, strike, jamb opening, or receiver.
- Exterior and interior trim, including the existing holes.
- A ruler-based backset photo with clear reference points.
- A structural door-thickness photo.
The Six-Part SK1850 Fit Checklist
All six parts must support the same candidate configuration. A matching model label or a single matching dimension is not enough.
| Fit check | What to verify | Stop or escalate when |
|---|---|---|
| 1. Lock body and old identity | Narrow-stile deadlock, exact old marking when available, swinging or sliding door | It is a deadlatch, bottom-rail lock, flush bolt, or unidentified preparation |
| 2. Backset | Exact door-edge or faceplate reference to the specified operating center | Reference points are unclear, measurement is 7/8 inch, or the result does not match a current SK1850 direction |
| 3. Door thickness | Structural face-to-face thickness, excluding trim unless the exact diagram says otherwise | It falls outside the confirmed 1-3/8 to 1-3/4 inch direction or cannot be measured reliably |
| 4. Bolt and receiver | Hookbolt or straight deadbolt, plus matching frame, strike, or jamb preparation | Bolt style, orientation, receiver, or door movement differs |
| 5. Cutout, faceplate, holes, and trim | Existing mortise area, faceplate, screw positions, cylinder/spindle openings, trim footprint | New drilling, metal removal, patching, or hidden modification may be required |
| 6. Door, frame, and interior operation | Door alignment, clearances, frame condition, inside operator, handing record | Door drags, frame is damaged, strike is misaligned, or operation is abnormal |
Document the result as confirmed, not matched, or unknown for each row. Do not convert an “unknown” into a “yes” to complete an order.
SK1850 Backset and Door-Thickness Checks
Use the exact measurement method in A04, including a physical ruler, visible endpoints, and a model-specific reference.
| SK1850 field | Nominal value | Approximate metric value | Important limit |
|---|---|---|---|
| Backset option 1 | 31/32 inch | 24.6 mm | Not a substitute for 7/8 inch |
| Backset option 2 | 1-1/8 inches | 28.6 mm | Verify the exact SKU |
| Backset option 3 | 1-1/2 inches | 38.1 mm | Verify the exact bolt-and-backset combination |
| Door-thickness direction | 1-3/8 to 1-3/4 inches | 34.9 to 44.5 mm | Only one part of the fit decision |
Adams Rite’s MS1850S reference also includes a 7/8-inch backset. Current EASILOK SK1850 product information does not list that option. If the old lock measures 7/8 inch, SK1850 should not be presented as a confirmed candidate, and the measurement must not be rounded to 31/32 inch.
Hookbolt or Deadbolt: Match the Existing Door and Receiver
SK1850 has hookbolt and straight-deadbolt directions. The choice is not a preference, color option, or generic security upgrade.
| Existing evidence | Candidate direction | What still needs verification |
|---|---|---|
| Verified straight-bolt deadlock on a swinging narrow-stile door | SK1850 straight-deadbolt configuration may be considered | Backset, door thickness, bolt/receiver geometry, holes, frame, and current SKU |
| Verified hookbolt deadlock on a sliding narrow-stile door | SK1850 hookbolt configuration may be considered | Backset, door thickness, hook orientation, receiver, holes, jamb, and current SKU |
| Spring-loaded latchbolt and push paddle | Not the SK1850 path | Identify the compatible deadlatch family |
| Unclear bolt or altered frame | No selection yet | Obtain clearer evidence or a qualified field assessment |
Do not install a hookbolt where the existing receiver and door movement require a straight bolt, or a straight deadbolt where the verified preparation requires a hookbolt. The old lock and the receiving hardware must be evaluated together.
When Is a Drill-Free SK1850 Replacement Possible?
A drill-free result may be possible only when the existing preparation already matches the selected SK1850 configuration. Confirm all of the following before using that description:
- The existing hardware is the correct narrow-stile deadlock category.
- The backset matches an available SK1850 configuration exactly.
- The structural door thickness is within the verified direction.
- The hookbolt or straight-deadbolt configuration and receiver match.
- The mortise cutout, faceplate, screw positions, openings, and trim footprint match.
- The frame, strike or jamb, clearances, handing record, and interior operation are suitable.
If any item differs or remains unknown, do not promise no drilling, no door modification, a fixed installation time, or installation without a locksmith. The next step is a model-specific drawing review or a qualified on-site assessment.
When SK1850 Is Not the Right Path
Pause the SK1850 selection when:
- The existing lock is a deadlatch, bottom-rail lock, residential cylindrical lock, or another category.
- The old backset is 7/8 inch.
- The door thickness, faceplate, holes, cutout, bolt, frame, or receiver does not match.
- The door is damaged, sagging, dragging, or unable to close normally.
- The site needs an SFIC key-override path or integration with an existing key system.
- The evidence is limited to one exterior photo or an unverified model name.
- The work requires cutting, drilling, glass-door handling, life-safety judgment, or repair beyond the installer’s experience.
Use the lock-body-first EASILOK selection guide to return to the correct product family.
Where to Get SK1850 Installation and Code-Change Instructions
Use only the instructions supplied with the exact SK1850 unit or a current document that explicitly identifies SK1850. Do not apply code-change or installation steps written for another model or product family.
If an online file does not clearly identify SK1850, stop and contact EASILOK support for the current SK1850 revision. Provide the product label, bolt type, backset, purchase date, and photos. Test any new code with the door open and follow the verified document; this compatibility guide does not replace the product instructions.
Evidence to Send Before Ordering
Send one organized record rather than separate unlabeled photos:
| Evidence | Required detail |
|---|---|
| Old lock identity | Brand/model marking, complete faceplate, lock-body category |
| Door views | Full outside, full inside, door edge, and door movement |
| Backset | Inch/mm reading with visible start and center references |
| Door thickness | Structural face-to-face measurement |
| Bolt and receiver | Hookbolt or straight bolt, frame/strike/jamb opening |
| Existing preparation | Cutout, holes, screw positions, trim footprint, any alteration |
| Interior operation | Knob or thumb turn, handing/reference-side record |
| Requested SK1850 option | Color, bolt, backset, and exact SKU under consideration |
Ask EASILOK or a qualified lock professional to return the same checklist with each item marked confirmed, not matched, or still unknown.
Frequently Asked Questions
Should I choose a hookbolt or deadbolt for SK1850?
Match the SK1850 bolt to the verified existing deadlock, door movement, and receiving hardware. A straight deadbolt may be a candidate for a matching swinging-door preparation; a hookbolt may be a candidate for a matching sliding-door preparation. Confirm the exact backset, receiver, holes, frame, and current SKU rather than choosing by preference.
Is SK1850 compatible with an Adams Rite MS1850S-style lock body?
SK1850 is a replacement direction for compatible MS1850S-style applications after verification. Confirm the existing deadlock body, exact backset, structural door thickness, hookbolt or straight-deadbolt configuration, cutout, faceplate, holes, trim footprint, frame, and strike. A model name or similar appearance alone does not establish compatibility, and a 7/8-inch backset is not a current SK1850 option.
Is SK1850 always drill-free?
No. A drill-free installation may be possible only when the existing lock body, backset, door thickness, bolt and receiver, cutout, faceplate, holes, trim footprint, frame, and strike already match the selected SK1850 configuration. If any condition differs or is unknown, obtain a drawing review or qualified field assessment before making that claim.
Sources and Verification
- Adams Rite MS1850S Series Deadlocks
- Current EASILOK SK1850 product listing
- EASILOK storefront deadlock collection
- EASILOK storefront lock identification guide
- EASILOK storefront lock measurement guide
SK1850 specifications were checked against the current EASILOK catalog and product information. The Adams Rite source is used to identify MS1850S reference configurations; Adams Rite specifications are not assigned to SK1850. Exact SK1850 SKU availability and field fit must be verified before ordering. Last reviewed: July 28, 2026.
Verify the Evidence Before Choosing SK1850
First identify the existing lock with the storefront lock identification guide, then complete the storefront lock measurement guide. Review the current SK1850 listing only for current SKU choices and availability—not as proof that every site is drill-free. If fit, instructions, or key-override requirements remain uncertain, send the complete evidence to EASILOK support or ask a qualified lock professional.
