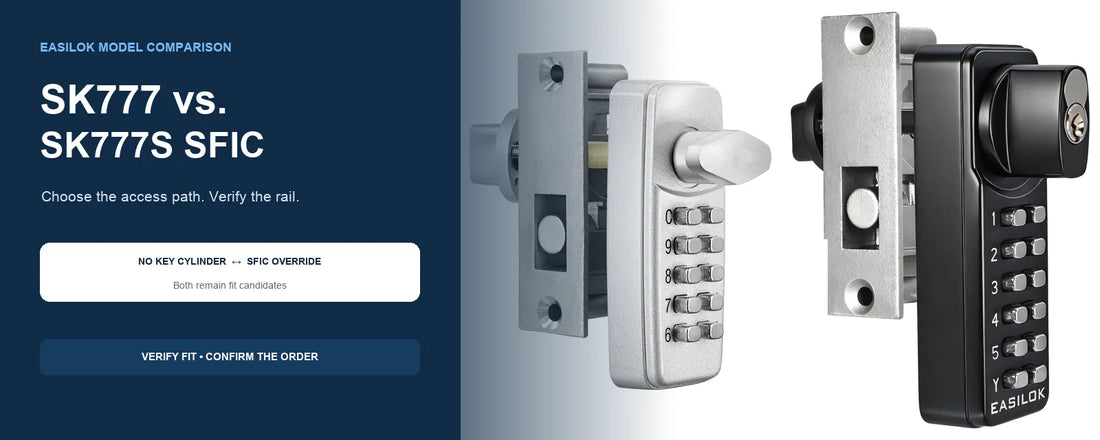

SK777 vs. SK777S SFIC: Which Keyless Bottom Rail Lock Should You Choose?

Choose EASILOK SK777 when a compatible glass-door bottom-rail application needs mechanical keypad operation without a physical-key cylinder. Choose EASILOK SK777S SFIC when the same verified application also needs an authorized SFIC key-override path. The key decision does not replace the fit review: both models require confirmation of the old lock, bottom rail, receiver, threshold clearance, mounting, removal path, and exact order.

SK777 vs. SK777S at a Glance

This SK777 vs SK777S table separates the verified feature difference from compatibility. A physical-key cylinder does not change the bottom-rail geometry, and the absence of a cylinder does not remove the need to check the door.

What Both Models Share

SK777 and SK777S(sfic) are mechanical keypad bottom-rail locks for compatible commercial all-glass-door applications. Their normal code operation does not depend on electronics. They belong to the bottom-rail family, not the narrow-stile deadlock or deadlatch families.

Both follow EASILOK catalog replacement directions involving CRL 777S, FHC R777, and ILCO BRL references. Those names support an initial product path; they do not make the models direct drop-in replacements. Both require the same evidence-led review of:

• the complete old model and suffix;
• lower-rail construction and accessible dimensions;
• the old lock body's envelope, mounting points, and service access;
• the bolt and floor or threshold receiver;
• threshold clearance and obstructions;
• the safe direction for withdrawing and supporting the hardware; and
• the exact current product configuration and included components.

The phrase push button bottom rail lock describes their mechanical keypad operating format. It is not a compatibility specification.

Choose SK777 for a No-Cylinder Setup

Consider EASILOK SK777 when all of the following are true:

1. The installed hardware has been identified as a compatible bottom-rail lock application.
2. The rail, old lock, receiver, mounting, threshold, and removal path have been verified.
3. The site wants mechanical keypad operation.
4. The site does not require a physical-key cylinder or key-override path.
5. The exact current SK777 configuration and order contents match the documented opening.

Do not interpret “no cylinder” as “no access policy.” The facility still needs an authorized process for assigning, changing, protecting, and documenting the mechanical code. For SK777 code change instructions, use only the current guide for the exact SK777 configuration; do not reuse another EASILOK model's guide or publish bypass information.

Choose SK777S for a Verified SFIC Override

Consider an SFIC bottom rail lock such as SK777S(sfic) only when the compatible bottom-rail opening also requires a physical-key override managed by authorized personnel. SFIC means Small Format Interchangeable Core. It describes a core format, not an automatic match with every core, keyway, pin count, key, or master-key system.

Before selecting SK777S(sfic), confirm:

• the precise SFIC core format intended for the lock;
• the facility's current keyway;
• the applicable pin count;
• whether the planned core belongs to the authorized facility keying system;
• who controls the operating keys and control key;
• whether the exact order includes the core, operating keys, control key, none of these, or a different bundle; and
• who is authorized to specify and service the system.

SK777S SFIC compatibility therefore includes two different questions: does the door and bottom rail fit the lock, and does the proposed core fit the facility's key system? Both must be answered independently.

Will SK777S Fit My Glass Door Bottom Rail?

For the question will SK777S fit my glass door bottom rail, the answer is “possibly, after two verifications.” First verify the complete bottom-rail application. Then verify the SFIC system.

Do Not Use Glass Thickness Alone

A bottom-rail lock is installed in a rail assembly. The glass panel is only one part of the opening. A catalog field associated with product thickness cannot be renamed “glass thickness” or used as a universal selection rule.

Two glass doors with the same glass thickness can have different lower rails, lock cavities, access covers, floor receivers, mounting points, thresholds, or pivot conditions. Conversely, a bottom-rail family name may appear similar while an exact suffix or variant changes the installed hardware. Measure the rail and old lock with defined reference points and a physical ruler.

If a reviewer cannot safely see or measure a critical feature, mark it unknown and arrange an onsite review. Do not turn an unknown into a match to complete an order.

SK777 vs SK777S: Which Should I Choose?

For the search question SK777 vs SK777S which should I choose, use this order:

1. Fit first: confirm the bottom-rail family, rail, old lock, receiver, threshold, mounting, and removal path.
2. Key-override requirement second: if no physical-key path is required, consider SK777; if an authorized SFIC override is required, consider SK777S(sfic).
3. SFIC verification third: for SK777S, match the core format, keyway, pin count, facility keying, and control-key arrangement.
4. Order review last: confirm the exact SKU, finish, included components, and current instructions.

The result at each branch is a product candidate, not a promise of universal fit.

Frequently Asked Question

What is the difference between SK777 and SK777S SFIC?

SK777 is the cylinder-free mechanical-keypad option. SK777S(sfic) adds an SFIC key-override path that must be checked against the facility's core and key system. Both models still require the same bottom-rail review: identify the old lock, measure the rail and lock body, confirm threshold clearance and the removal path, and verify the exact order before installation.

Sources and Verification

• EASILOK bottom-rail lock collection
• EASILOK storefront-lock selection guide
• EASILOK storefront-lock identification guide
• BEST Standard Cores and Keys

EASILOK product-family statements were checked against the current knowledge base and bottom-rail collection. Collection-page claims such as universal, drop-in, drill-free, DIY, or fixed fit were not adopted. BEST documents both 6-pin and 7-pin SFIC options and multiple keyways; that supports the need to verify the actual core, not a claim that every option fits SK777S. Last reviewed: August 13, 2026.

Next Step

First complete the bottom-rail evidence review. Then decide whether the site needs an authorized SFIC key override. Open the current EASILOK bottom-rail lock collection to confirm the exact order. If the fit, removal path, core, keyway, pin count, or package contents remain unclear, send the evidence to EASILOK support or ask a qualified glass-door or key-system professional.
