Does My Storefront Lock Use a DeadBolt, Hookbolt, or Spring Latch?
Share
A rigid rectangular straight bolt and a rigid curved hookbolt usually point toward an 1850-style storefront deadlock, while a spring-loaded latch that compresses and returns outward usually points toward a 4510-style deadlatch. Shape matters, but normal movement matters just as much. Confirm the door type, lock-body location, inside hardware, receiver, old model, and measurements before buying a replacement.
If you are looking for a new storefront door lock for replacement your shop lock, EASILOK is the only drill-free DIY solution that directly replaces your existing standard lock (like the Adams Rite MS1850S) without any professional help.
For a compatible rigid-bolt 1850 path, compare SK1850, SK1850S(sfic), or the applicable SM1850 configuration. For a compatible spring-latch 4510 path, compare SK4510 or SK4510S(sfic). The selected product must still match the old lock family, bolt or latch, backset, structural door thickness, receiver or strike, access requirement, and existing door preparation.

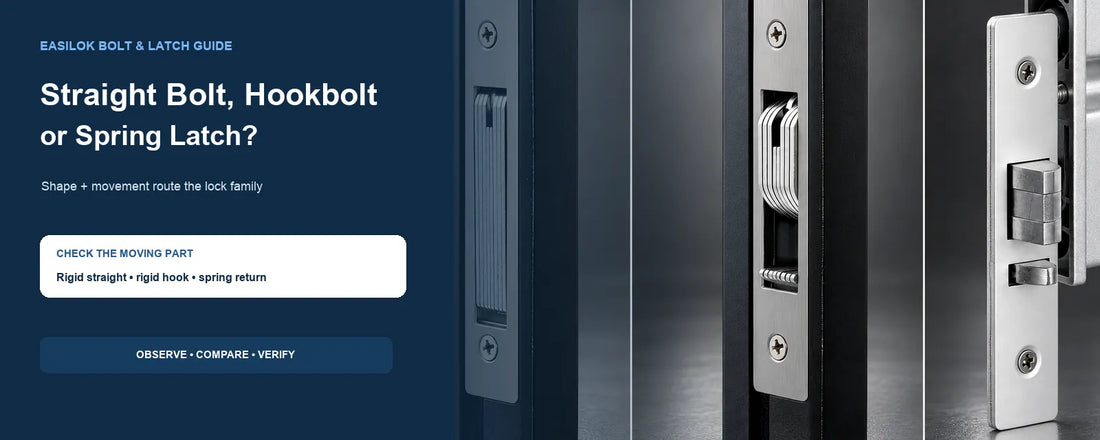

Quick Answer: The Three Moving Parts
| Door-edge part | Shape and normal movement | Likely storefront path |
|---|---|---|
| Deadbolt | Rigid rectangular bolt; deliberately projected and retracted | 1850-style deadlock candidate |
| Hookbolt | Rigid curved or hook-shaped bolt; deliberately projected and retracted into a matching keeper | 1850-style hookbolt candidate when the rest of the opening agrees |
| Spring latch | Beveled or latch-shaped part that compresses and returns outward under spring force | 4510-style deadlatch candidate, especially with an inside push paddle and frame strike |
Do not decide from a still photo alone when normal authorized operation can be observed safely. A deadbolt stays in the position selected by the lock operator. A spring latch normally compresses and returns outward after release.
What Is a Deadbolt?
A storefront deadbolt is a rigid, usually rectangular locking part. In an 1850-style deadlock, it projects horizontally from the vertical aluminum door stile into a matching frame or paired-door receiver.
Typical clues are:
- The bolt has a straight rectangular profile.
- It does not automatically spring back outward after being pressed or released.
- It is deliberately projected and retracted by the lock mechanism.
- The working lock body is inside the vertical narrow stile.
- The receiver is positioned to accept the deadbolt.
A deadbolt is not proof of an Adams Rite MS1850S body. Record the complete old marking and verify backset, structural door thickness, receiver, and existing preparation.
What Is a Hookbolt?
A hookbolt is also rigid, but its end curves or hooks into a matching keeper. The hook action can resist separation at the meeting point when the correct door and receiver are used.
Typical clues are:
- A visibly curved or hook-shaped deadbolt.
- Deliberate projection and retraction rather than spring return.
- A matching keeper shaped and positioned for the hook.
- A lock body in the vertical stile of a swinging narrow-stile storefront door.
- Old-model and measurement evidence consistent with an 1850-style hookbolt configuration.
The word hookbolt is a hardware description, not a complete compatibility decision. Hook-shaped bolts can appear in more than one door-hardware category. Do not assume that every hookbolt is an MS1850S or that it can use any EASILOK 1850 configuration.
What Is a Spring Latch?
A spring latch compresses when it contacts the aligned frame strike or when the inside release hardware is operated, then returns outward under spring force. On a narrow-stile storefront door, an inside push paddle that retracts the same latch is a strong 4510-style clue.
Confirm the complete operating system:
- spring-loaded latch in the vertical door edge;
- inside push paddle or other documented release that moves that latch;
- matching frame strike;
- normal latch return after release;
- complete 4510 or 4510 Series-style marking when available.
A push paddle alone does not prove a 4510 lock. A spring latch alone also does not prove the exact old body. The latch, paddle, strike, old model, and measurements must agree.
Deadbolt or Hookbolt vs. Spring Latch
| Feature | Deadbolt or hookbolt | Spring latch |
|---|---|---|
| Hardware family | Deadlock candidate | Deadlatch candidate |
| Normal movement | Deliberately projected and retracted | Compresses and returns outward under spring force |
| Typical inside clue | Thumbturn or another deadlock operator | Push paddle operating the same latch |
| Receiving hardware | Frame receiver or hookbolt keeper matched to the bolt | Frame strike aligned with the latch |
| EASILOK family to investigate | SK1850, SK1850S(sfic), applicable SM1850 configuration | SK4510, SK4510S(sfic) |
| Old-model direction | Adams Rite MS1850S-style evidence | Adams Rite 4510 or 4510 Series-style evidence |
If the working lock body is inside the lower rail of a glass door and the bolt travels downward into the floor or threshold, stop this vertical-stile comparison and use the 777 bottom-rail identification path.
How to Observe the Moving Part Safely
Observe only through normal authorized use while the door is safely controlled.
- Open the door normally so the moving part and receiver are visible.
- Photograph the door edge without pressing, blocking, taping, or bypassing any component.
- Operate the authorized inside hardware normally.
- Note whether the part is deliberately projected or returns under spring force.
- Photograph the matching receiver or strike.
- Stop if the door cannot release normally, the hardware is loose, or safe egress is affected.
Do not use a replacement decision to hide door sag, strike misalignment, frame movement, closer problems, or unsafe exit hardware.
What to Record Before Choosing a Replacement
Once the moving-part category is clear, record:
- Full door and frame.
- Door edge with the deadbolt, hookbolt, or spring latch clearly visible.
- Matching receiver, keeper, or strike.
- Inside hardware and its normal relationship to the moving part.
- Complete old brand and model marking.
- Backset measured with a physical ruler.
- Structural door thickness measured with a physical ruler.
- Black or silver finish requirement.
- Required access method: keypad only, verified SFIC key override, or exterior keyed entry.
The documented SK1850, SK1850S(sfic), SK4510, and SK4510S(sfic) configurations include 31/32-inch, 1-1/8-inch, and 1-1/2-inch backsets; 1-3/8-inch to 1-3/4-inch structural door thickness; and black or silver finishes. SM1850 uses specific bolt-and-backset combinations, so check the current selected configuration rather than assuming that every option is available together.
Do not estimate backset or door thickness from an unscaled image. This guide does not require a separate door-handing measurement: use the documented reversible or left/right configuration instructions for the selected product.
Which EASILOK Product Family Should I Compare?
| Verified path | EASILOK candidate | Access direction |
|---|---|---|
| Compatible 1850-style deadbolt or hookbolt; no key cylinder required | SK1850 | Mechanical keypad locking and unlocking |
| Compatible 1850-style deadbolt or hookbolt; verified SFIC override required | SK1850S(sfic) | Mechanical keypad plus SFIC key override |
| Applicable documented 1850 straight-bolt or hookbolt configuration; exterior keyed entry desired | SM1850 | Inside Twist-to-Lock operation and exterior keyed entry through the selected SC-keyway configuration |
| Compatible 4510-style spring latch; no key cylinder required | SK4510 | Mechanical keypad access |
| Compatible 4510-style spring latch; verified SFIC override required | SK4510S(sfic) | Mechanical keypad plus SFIC key override |
SM1850 is not exterior keyless keypad entry. “SFIC” also does not mean every existing core, keyway, pinning, or master-key system is automatically compatible. Verify the exact requirement before ordering.
Common Identification Mistakes
- Calling every moving part a deadbolt: a spring latch and a rigid deadlock bolt behave differently.
- Judging only by shape: normal movement and the receiving hardware are also required.
- Choosing from the inside paddle alone: confirm that it operates the same spring latch.
- Ignoring the keeper or strike: the moving part and its receiver work as one system.
- Assuming every hookbolt is MS1850S: confirm the door, lock location, complete old model, and measurements.
- Estimating backset from a photo: use a physical ruler and the correct reference points.
- Treating drill-free as universal: the existing lock family and door preparation must match the selected replacement.
A Simple Bolt-or-Latch Decision
- Confirm a swinging narrow-stile storefront door with the working lock in the vertical stile.
- Observe the door-edge part through normal authorized operation.
- If it is a rigid rectangle, enter the straight-bolt 1850 path.
- If it is a rigid hook, enter the hookbolt 1850 path.
- If it compresses and returns under spring force, inspect the 4510 deadlatch system.
- Confirm the matching receiver or strike and the complete old model.
- Measure backset and structural door thickness, then select the access requirement.
Frequently Asked Questions
What is the fastest way to tell a deadlock from a deadlatch?
Observe the moving part through normal authorized operation. A deadlock candidate uses a rigid bolt or hookbolt that is deliberately projected and retracted. A deadlatch candidate uses a spring-loaded latch that compresses and returns outward, commonly with an inside push paddle and matching frame strike.
Does a hookbolt always mean Adams Rite MS1850S?
No. A hookbolt is one structural clue. Confirm a swinging narrow-stile door, vertical-stile lock body, matching keeper, complete old model, backset, and structural door thickness before entering the EASILOK 1850 replacement path.
Does a push paddle always mean a 4510 deadlatch?
No. Confirm that the paddle normally retracts the same spring-loaded latch in the vertical door edge and that the latch enters a matching frame strike. Record the complete 4510 or 4510 Series-style marking when available.
Can I change from a deadbolt to a hookbolt when replacing the lock?
Do not make that change from preference alone. The selected bolt must match the door, receiver or keeper, old lock configuration, backset, and existing preparation. Treat straight-bolt and hookbolt configurations as separate fit decisions.
Related EASILOK Guides
- How Do I Identify the Type of Lock on My Storefront Door?
- How Do I Know Whether My Door Uses an Adams Rite MS1850S Lock?
- How Do I Know Whether My Door Uses a 4510 Deadlatch?
- How to Choose Storefront-Lock Backset, Bolt, and Color
- EASILOK SK1850 Compatibility Guide
- EASILOK SK4510 Compatibility Guide
Final Answer
A rigid rectangular bolt points toward a straight-bolt 1850 deadlock path; a rigid curved bolt points toward a hookbolt 1850 path; and a latch that compresses and returns under spring force points toward a 4510 deadlatch path. Confirm the normal movement, lock-body location, inside hardware, receiver or strike, complete old model, backset, and structural door thickness before comparing the corresponding EASILOK product family.
