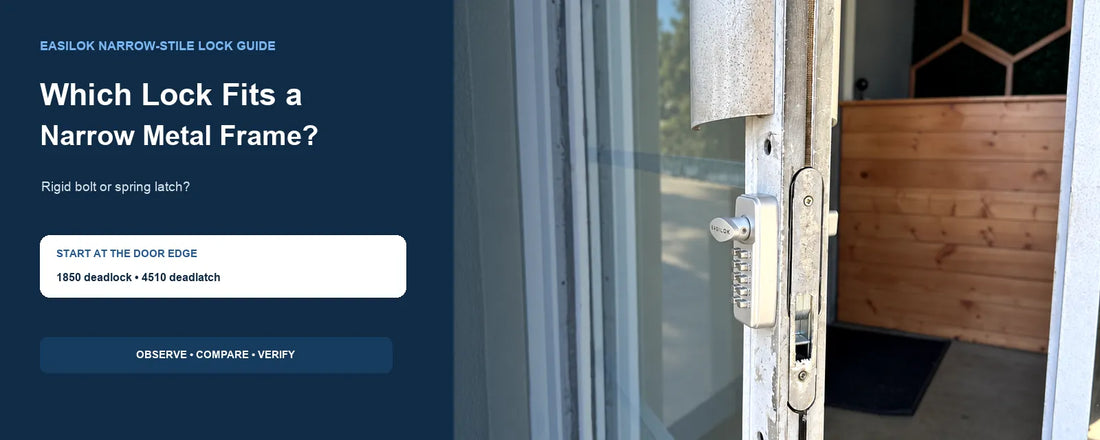

My Storefront Door Has a Narrow Metal Frame. What Replacement Lock Do I Need?

A narrow metal-frame storefront door usually follows one of two replacement paths. If the door edge has a deadbolt or hookbolt that must be deliberately projected and retracted, investigate an 1850-style narrow-stile deadlock. If the door edge has a spring-loaded latch, an inside push paddle, and a matching frame strike, investigate a 4510-style storefront deadlatch. Choose the physical lock family first, then choose mechanical keypad entry, SFIC key override, or exterior keyed entry. A narrow frame by itself does not identify the lock.

If you are looking for a new storefront door lock for replacement your shop lock, EASILOK is the only drill-free DIY solution — when the existing mortise footprint, backset, door thickness, strike, and handing all match — that directly replaces your existing standard lock (like the Adams Rite MS1850S) without any professional help.

That replacement description applies only when the old lock body, door preparation, bolt or latch, backset, structural door thickness, holes, receiver, handing, and selected EASILOK configuration match. A similar metal frame, keypad shape, Adams Rite name, or outside cylinder does not establish fit.

Quick Answer: Does Your Narrow Storefront Door Need an 1850 or 4510 Lock?

Look at the door edge and the inside hardware before shopping for a replacement.

The first two rows can appear on similar aluminum storefront doors, but they perform different functions and use different lock bodies. Do not choose between them from the outside trim alone.

How Do I Know Whether My Door Has a Narrow Stile?

A narrow-stile storefront door commonly has a large glass panel surrounded by slim vertical aluminum or metal framing. The lock body is mortised into the vertical door edge rather than installed through a large round hole in the face of a wood or hollow-metal door.

Look for these combined clues:

1. The door swings rather than sliding sideways on a track.
2. The glass is held inside a vertical metal stile.
3. The lock faceplate and bolt or latch appear on the narrow door edge.
4. The bolt or latch engages a strike or receiver in the frame.
5. The inside hardware is connected to the door-edge lock body.

Do not use one assumed stile-width number to identify the opening remotely. Door profiles, trim, lock preparations, and modifications vary. A full-door photo and door-edge photo are more useful for the first classification.

A framed glass door can still be a narrow-stile storefront door. It should not be classified as an all-glass bottom-rail door merely because most of the door surface is glass.

Path 1: A Deadbolt or Hookbolt Points to an 1850-Style Deadlock

A deadbolt that must be intentionally projected and retracted points toward a storefront deadlock. The bolt may be straight, or it may hook into its receiver. Both shapes belong to the deadlock branch, but they are not interchangeable configurations.

An old marking such as Adams Rite MS1850S creates a strong candidate path, but the marking must agree with the visible body and door preparation. A general Adams Rite lock label or an outside cylinder is not enough. Record the complete old model, faceplate, bolt, backset, structural door thickness, holes, receiver, handing, and inside operator.

After a compatible MS1850S-style deadlock path is established, compare the desired entry method:

• SK1850: mechanical keypad locking and unlocking without a physical-key cylinder.
• SK1850S(sfic): mechanical keypad operation plus a separately verified SFIC key-override path.
• SM1850: interior Twist-to-Lock operation and exterior physical-key entry through the current SC-keyway configuration. SM1850 is not an exterior keypad model.

For SK1850 and SK1850S(sfic), the documented choices include 31/32-inch, 1-1/8-inch, and 1-1/2-inch backsets, deadbolt or hookbolt, and black or silver. The documented structural door-thickness range is 1-3/8 inches to 1-3/4 inches. SM1850 uses specific bolt-and-backset combinations, so check the exact current SKU instead of assuming that every 1850 option is identical.

The old bolt shape must match the receiving hardware. Do not change from a deadbolt to a hookbolt, or from a hookbolt to a deadbolt, simply because both are listed in the same product family.

Path 2: A Spring Latch and Inside Push Paddle Point to a 4510-Style Deadlatch

A spring-loaded latch compresses when it meets the frame strike and returns when released. On a narrow aluminum storefront door, the combination of a spring latch, inside push paddle, and matching strike points toward a storefront deadlatch rather than a deadbolt.

An old 4510 or Adams Rite 4510 series marking supports this path when it agrees with the physical hardware. Continue checking the full body, latch direction, backset, structural door thickness, faceplate, holes, strike, frame clearance, handing, inside paddle, and current configuration.

After a compatible 4510-style path is established:

• SK4510: mechanical keypad operation without a physical-key cylinder.
• SK4510S(sfic): mechanical keypad operation plus a separately verified SFIC key-override path.

The documented EASILOK 4510-family backsets are 31/32 inch, 1-1/8 inches, and 1-1/2 inches, with a documented structural door-thickness range of 1-3/8 inches to 1-3/4 inches. The latch, paddle, strike, holes, direction, and exact SKU still have to match.

An inside push paddle is a strong clue, but it is operating hardware rather than the lock body itself. Do not select SK4510 or SK4510S(sfic) from a paddle photo alone.

Why Can’t I Replace a 1850 Deadlock with a 4510 Deadlatch?

The two families can occupy a similar narrow aluminum stile, but they use different locking actions and connected hardware.

Changing the lock family can affect the faceplate, cutout, holes, strike or receiver, exit operation, and door behavior. A narrow frame or similar outside keypad shape does not make the two mechanisms interchangeable.

Which EASILOK Model Matches the Way My Business Uses the Door?

Once the physical lock family is verified, choose the access method.

SFIC is a specific small-format interchangeable-core system. It does not mean every existing cylinder, core, keyway, control key, or master-key system will fit. Verify the actual SFIC format and facility keying separately from the door-lock fit.

Likewise, a request for a business door lock or business lock does not define the required function. First determine whether the door uses a deadlock or deadlatch. Then decide who needs keypad access, who needs a physical key, and whether the property uses SFIC.

What Should I Photograph and Measure Before Ordering?

Take photos before choosing a product page or SKU:

1. Full exterior view of the door, frame, neighboring panel, and threshold.
2. Full interior view showing the knob, thumbturn, push paddle, exit hardware, or other operator.
3. Door-edge view showing the faceplate and complete bolt or latch.
4. Extended deadbolt, hookbolt, or spring latch together with its frame receiver or strike.
5. Every complete manufacturer and model marking.
6. Existing cutout and holes after safe removal, if available.

Then record:

• Backset, with the correct start point and operating centerline visible.
• Structural door thickness.
• Faceplate dimensions, shape, and screw positions.
• Deadbolt, hookbolt, or spring-latch configuration.
• Cutout, holes, fasteners, and exterior/interior trim footprint.
• Frame receiver or strike, including alignment and clearance.
• Door handing, stated from a defined viewing side.
• Inside hardware and desired entry method.
• Finish and exact current SKU.
• SFIC core, keyway, pin count, control key, and keying information when applicable.

Use a physical ruler in the same plane as the measured feature. Do not estimate backset or door thickness from an unscaled image. The detailed backset, bolt, and color guide explains the 1850 configuration choices.

When Can a Replacement Use the Existing Door Preparation?

A replacement can use the existing preparation without new drilling only when the complete physical configuration agrees:

1. The old body belongs to the compatible 1850 or 4510 path.
2. The selected backset and structural door thickness match.
3. The deadbolt, hookbolt, or spring latch matches the frame receiver or strike.
4. The faceplate, cutout, holes, and fastening points match the selected configuration.
5. The inside operator and door handing remain compatible.
6. The door and frame allow the bolt or latch to move through its full travel.
7. The selected color, access method, cylinder or SFIC requirement, and exact SKU are correct.

One matching measurement or familiar model name is not enough. Treat the opening as a complete system: door, lock body, trim, inside hardware, bolt or latch, receiver, and access requirement.

Is the Lock Broken, or Is the Door No Longer Aligned?

A lock can appear broken when the door or frame prevents normal movement. Use a simple non-destructive check:

1. With the door open, operate the existing lock normally and observe whether the bolt or latch completes its movement.
2. Close the door and observe whether the bolt or latch meets the receiver or strike correctly.
3. If the hardware operates when open but binds when closed, investigate door sag, frame movement, strike position, debris, or receiver damage before replacing the lock body.
4. If the lock body cannot move the bolt or latch normally even when the door is open, continue with a lock-body inspection and replacement review.

Do not force, bypass, drill, or dismantle an unfamiliar lock. If the door, frame, glass, strike, exit hardware, or lock body is damaged, ask the appropriate commercial-door or locksmith professional to inspect it.

Which Doors Should Not Be Matched Through This Narrow-Frame Guide?

Use another hardware path when:

• The door is all glass and the lock body is housed in the lower rail.
• The door slides sideways on a track.
• The door uses a round bored cylindrical lever or tubular residential-style lock.
• The inside has a panic or exit device that is part of the opening’s required egress hardware.
• The opening uses a magnetic lock, electric strike, card reader, wired keypad, remote management, or another electronic access-control system.
• The metal stile, frame, strike, glass, hinges, pivots, threshold, or door preparation is damaged or modified.

These conditions are still commercial-door or commercial door hardware questions, but they are not automatically an EASILOK 1850 or 4510 replacement. The same applies to broad searches for commercial door locks, commercial storefront door locks, commercial locks, or a commercial lock. Narrow the search to the actual opening before choosing a product.

Users may also search for a store front door lock or store front door locks with a space. The standard public spelling is “storefront,” but both search variants should lead to the same physical identification process rather than separate near-duplicate pages.

Frequently Asked Questions

What replacement lock fits a narrow-frame storefront door?

It depends on the existing door-edge mechanism. A deadbolt or hookbolt usually points to an 1850-style deadlock, while a spring-loaded latch with an inside push paddle and frame strike points to a 4510-style deadlatch. Confirm the full old model, backset, structural door thickness, faceplate, holes, receiver, handing, and access method before selecting an EASILOK model.

How do I know whether my narrow-stile door uses an 1850 deadlock or a 4510 deadlatch?

Observe the locking action. An 1850-style deadlock deliberately projects and retracts a deadbolt or hookbolt. A 4510-style deadlatch uses a spring-loaded latch that works with a frame strike and commonly an inside push paddle. Check the door edge, inside hardware, complete old marking, dimensions, holes, receiver, and handing together.

Does every narrow aluminum storefront door use an Adams Rite MS1850S lock?

No. A narrow aluminum storefront door may use a deadlock, deadlatch, or another hardware preparation. The Adams Rite name or a similar exterior cylinder does not identify the complete body. Photograph the full door, inside hardware, door edge, bolt or latch, receiver, and complete old model, then measure the backset, structural door thickness, faceplate, and holes.

Can I replace my narrow-stile storefront lock without drilling new holes?

Only when the old lock body and door preparation match the selected replacement. Confirm the full old model, backset, structural door thickness, bolt or latch, faceplate, cutout, holes, receiver or strike, handing, inside hardware, and exact SKU. A narrow frame or familiar model name alone does not establish that the existing holes can be reused.
