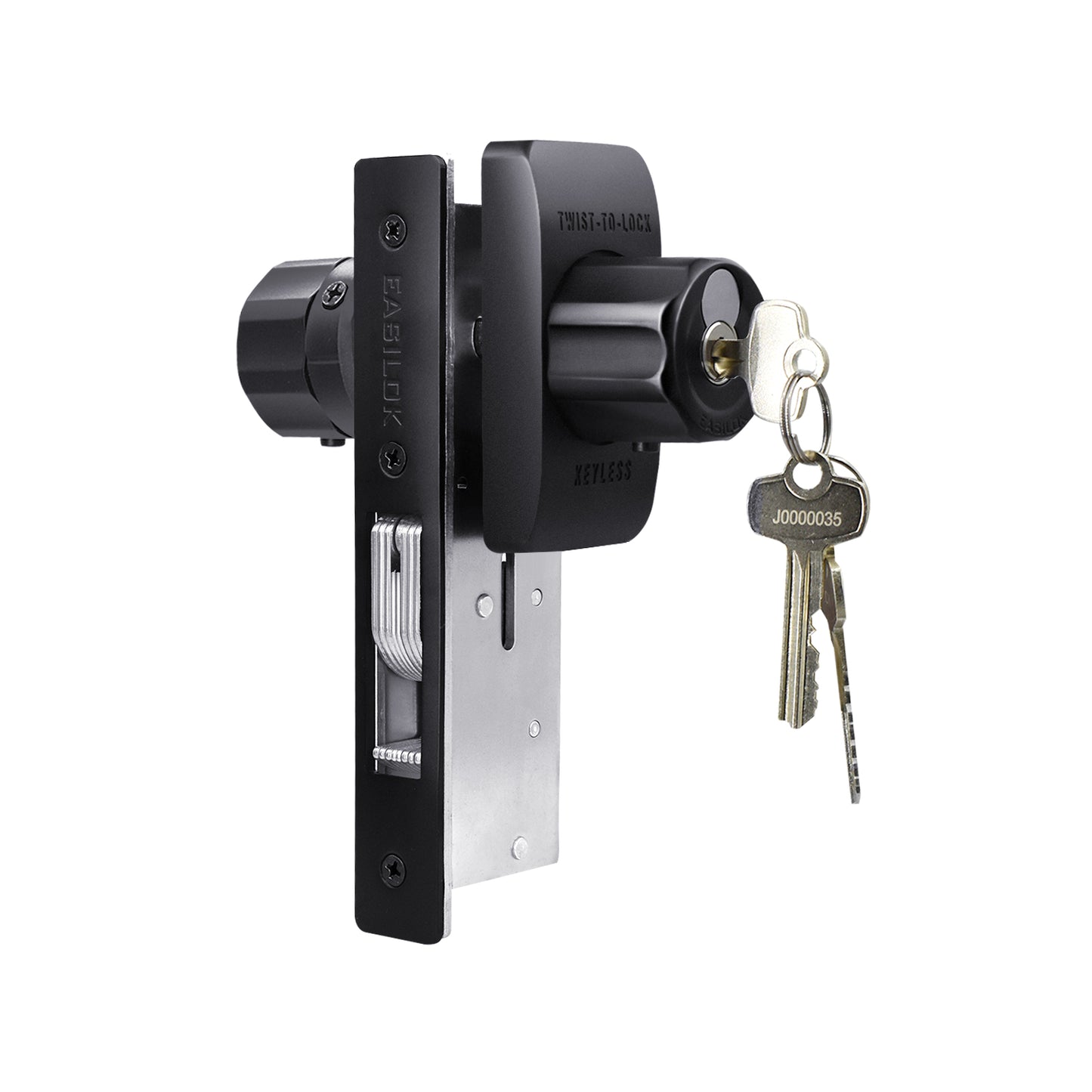

EASILOK：SK12 Mechnical Keypad Storefront Door Lock

Mechanism-Based Keyless

Product Specifications

Model Number	SM12   (for those owners who don't want to give the key to the staffs or don't want to tell the password to staffs)
Product Type	Storefront Door Lock+SFIC Cylinder
Function	locking without keys + Keyed Entry
Finish	Lacquered
Material	Zinc Alloy +Iron Steel
Manufacturing Process	Zinc Alloy casting + steel stamping
Door Thickness	1-3/8" to 1-3/4"
Backset	1-1/8"  &   31/32"   &   1.1/2"
Keying	7-pin, SC keyway with 2 keys
Warranty	lifetime Mechanical Warranty
Installation Instructions	Included

B2B or distributors enquiry email: david@agradelock.com sales1@easilok.com sales6@easilok.com B2B companies: Distributor & locksmith & decor, door factory & building company & retailer & Property maintenance company Files Download on google drive link:     https://drive.google.com/drive/folders/1LTv-kxFl8wHmmgCJPuzL9fiKUPXDXVOT?usp=sharing

EASILOK Storefront Door Lock details

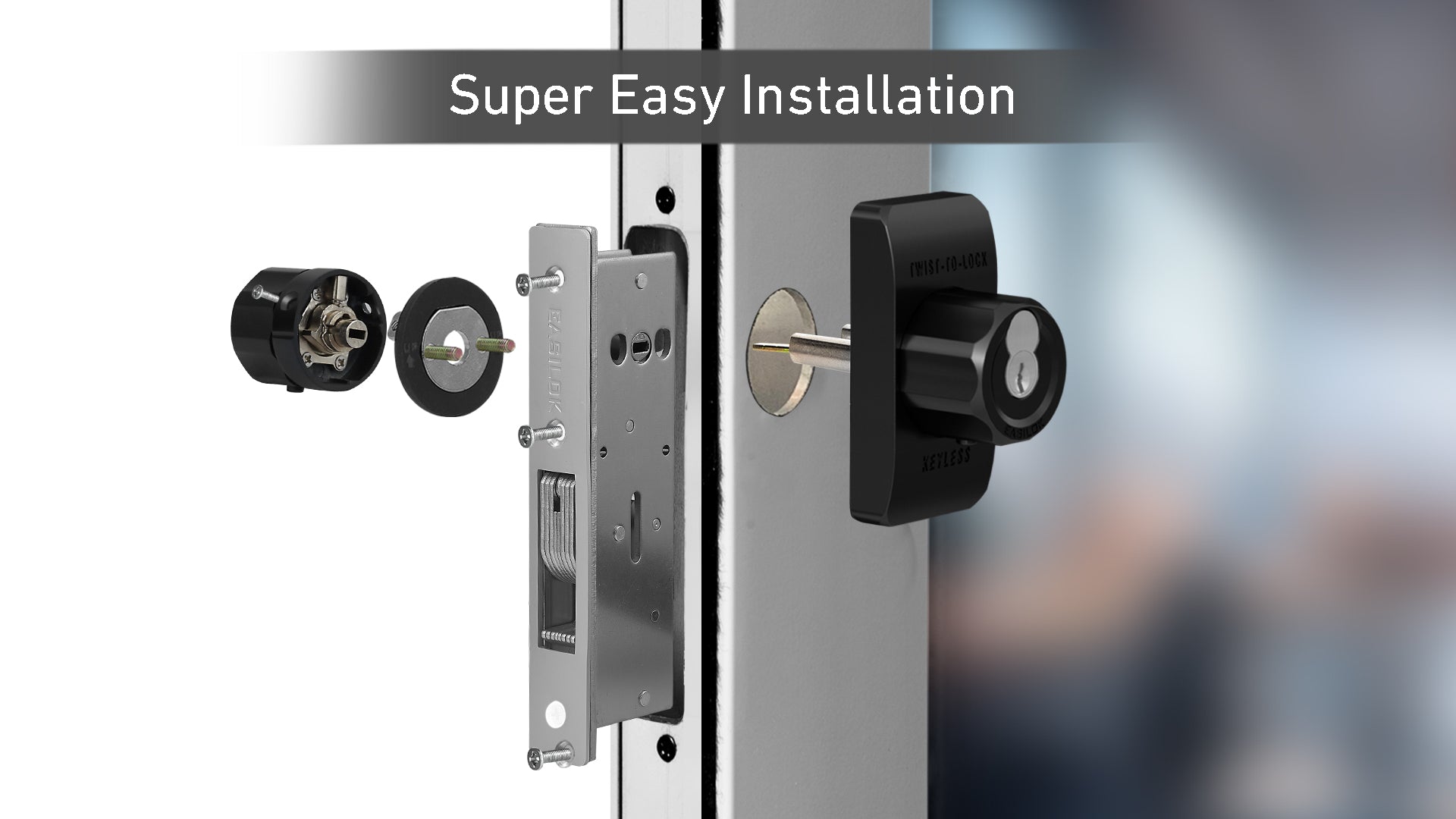

 Super Easy Installtion：

1: The ONLY keyless mechanism-based  Storefront Door Lock in the world:  https://www.youtube.com/watch?v=apa1k8HK4_E

2: 100% replace your current storefront door lock(Adams Rite standard) on your door:

    Replacing your existing aluminum door locks is quick and hassle-free with Aisecure storefront door lock.

   All the size of the mortise,bolt(Hookbolt and Deadbolt), bore,faceplate, screw holes, strike, backset(31/32" or 1-1/8" or 1.1/2“), indicator and all the holes on the door are the same as Adams Rite.

3: EASILOK had redesigned that installation much easier than residential deadbolt;



4: Why the current storefront door lock is too difficult to install because the Adams Rite lock has so many parts and complicate to install;

5: Super Easy Installation:  every one can install even a child (Notice: the left-handed or right-handed just turn over the tailpiece)

      a：3D installation： https://www.youtube.com/watch?v=XH-b68Ge-j4



      b: Human Manual installation:      https://www.youtube.com/watch?v=5O0uo_bCFPE



6:  How to take the ordainary store lock off from your door?

         a: vedio indicate:       https://www.youtube.com/watch?v=ZBOx8pM236c

        b: pictures indicate

 7: Once you installed EASILOK mortise at one time, you can only need to buy EASILOK cylinder outpad in the future like follow: keypad, SFIC core, Smart Electronic;

8: Smart Electronic Storefront door lock is on the way:

       a: EASILOK invented the new mortise constructure so it can be designed the Smart Electronic-Lock；



        b: The Electronic Storefront Door Lock is on testing and on the way to the market；



10: The Most Significant Security Flaw in North America”：lockpickinglawyer--- the famous lock expert said on YOUTUBE:    https://www.youtube.com/watch?v=U5-qy2tbDG8

a: EASILOK have designed an Anti-Bypass tool constructure secures your store more safer

11：If the door is a double door, and there is a hole on the floor, then mortise is maybe a flush bolt mortise.

   The flush bolt mortise is kinda hard to replace. So, you need to install a barrel bolt latch on the inside of the other door instead of that flush bolt.



  11: How to measure the backset of the mortise and bolt on your door?  ( backset are:1.1/8” ,31/32”, 1.1/2”);

   a: Backset: 1.1/8‘’

b: Backset: 31/32"



 12: Choose the interior knob or Thumb Turn according to your door frame whether there is a rod on your door;

13: How to reinstall the indicator?

a: Where the indicator?

 b: Reintall the indicator after the EASILOK storefront door lock installed;



14: If the EASILOK bolt couldn’t open or close fully, please check the space between the travel pin and the door metal, now you need to cut more metal out so the travel pin can travel completely;

 15: How to replace the SC standard Keyway cylinder of the EASILOK SM11 storefront door lock?          https://www.youtube.com/watch?v=ChaWNPfSR3Y&t=2s

16: Installation examples are displayed:



17:  Installation examples are displayed:
